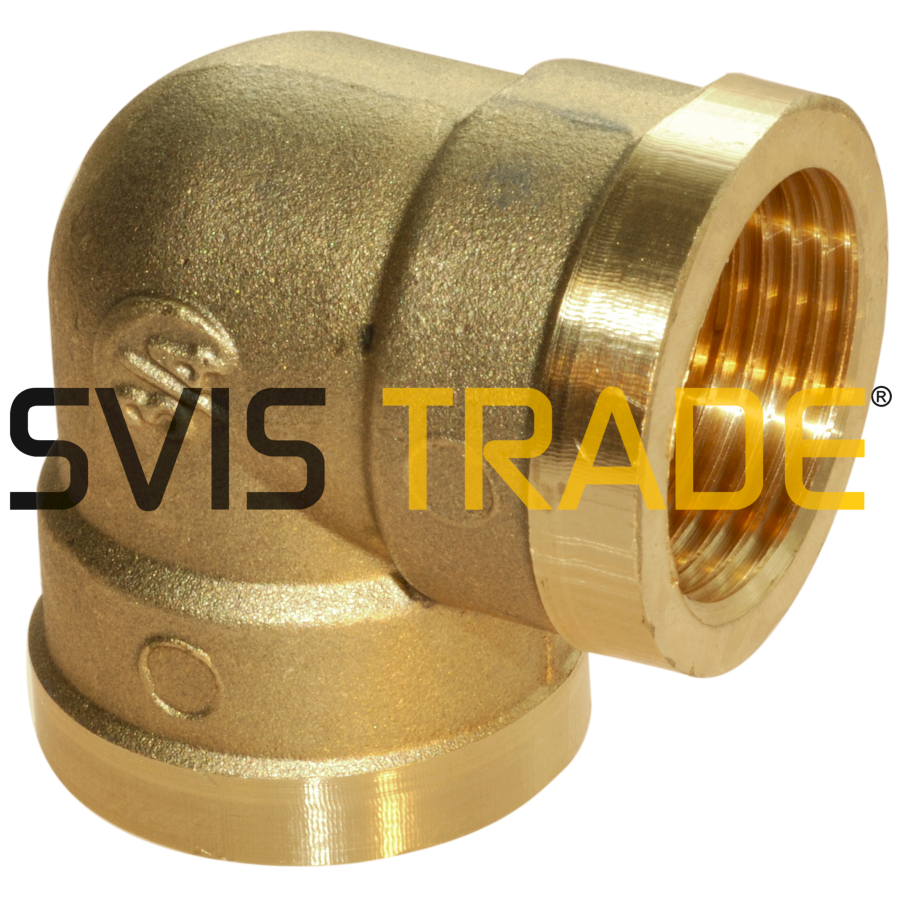

090 6/4" STD Elbow FF
Fittings of brass CW617N. Fittings are specified for joining of threaded according to ISO 228-1. Design: without surface treatment.
| Your price | 184,89 Kč |
| Your price without VAT | 152,80 Kč |
In stock (631 pcs)Not in stock
| Unit: | pcs |
| Code 2: | 031.MMS.090.040 |
| EAN: | 8592018404427 |
| Warranty: | 2 YEARS |
| Norms: | ČSN EN 10242, ČSN ISO 7-1 |
| Certificates: | B-02228-20 |
We recommend
Description

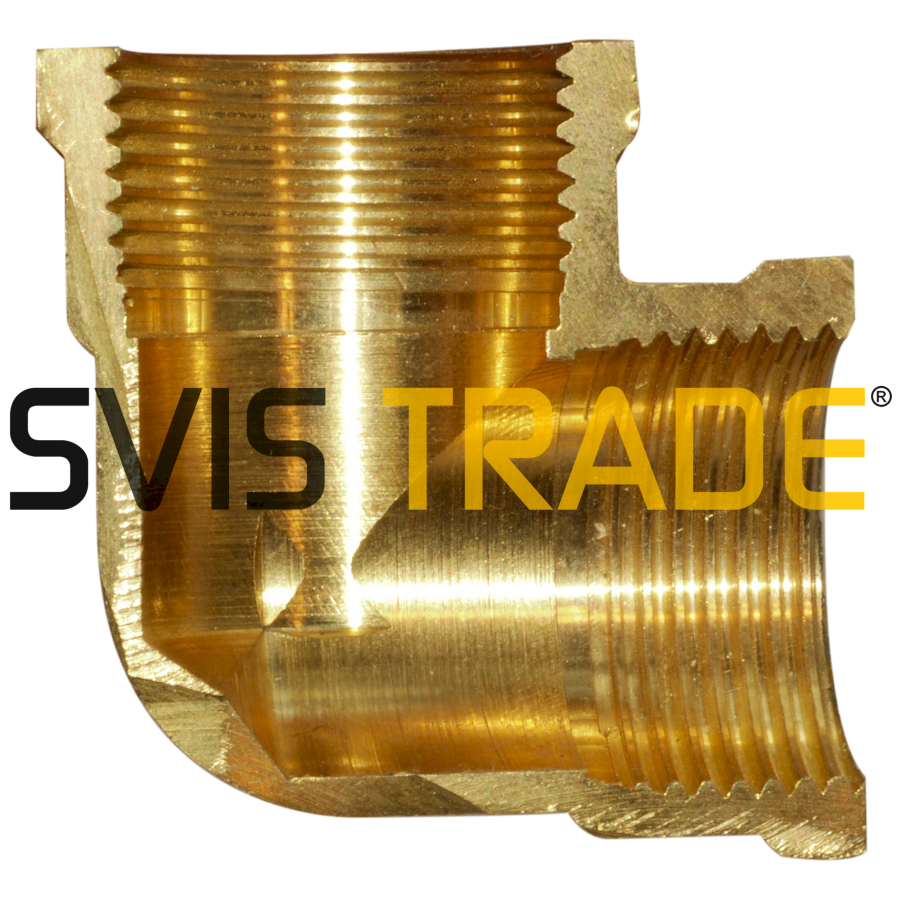

Thread brass fitting, type - elbow 90 ° with pipe threads inner x inner, without surface treatment. Connecting threads G are parallel for join not sealing on threads according ISO 228-1. Produced according EN 1254-4.
Using:
Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.
Media
Videos
Other
090 6/4" Elbow black FF
FC09064
113,38 Kč / pcs with VAT
In stock (1921 pcs)Not in stock
Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design is black.
090 6/4" Elbow galv. FF
FP09064
123,42 Kč / pcs with VAT
In stock (10671 pcs)Not in stock
Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design: galvanized. Zinc coating thickness of 70 microns is generated by hot dip galvanizing
090 6/4" (48,3mm) Elbow steel
FOC09064
63,89 Kč / pcs with VAT
In stock (2180 pcs)Not in stock
Fitting of carbon stell S235. Type 3D - Elbow 90°: radius of curvature R≈1,5D. Supplied in black state with thin layer of conservative oil.
090 6/4" (51,0mm) Elbow steel
FOC09064X
73,47 Kč / pcs with VAT
In stock (253 pcs)Not in stock
Fitting of carbon stell S235. Type 3D - Elbow 90°: radius of curvature R≈1,5D. Supplied in black state with thin layer of conservative oil.
