092 6/4" STD Elbow MF
Fittings of brass CW617N. Fittings are specified for joining of threaded according to ISO 228-1. Design: without surface treatment.
| Your price | 200,98 Kč |
| Your price without VAT | 166,10 Kč |
In stock (1042 pcs)Not in stock
| Unit: | pcs |
| Code 2: | 031.MMS.092.040 |
| EAN: | 8592018404519 |
| Warranty: | 2 YEARS |
| Norms: | ČSN EN 10242, ČSN ISO 7-1 |
| Certificates: | B-02228-20 |
We recommend
Description

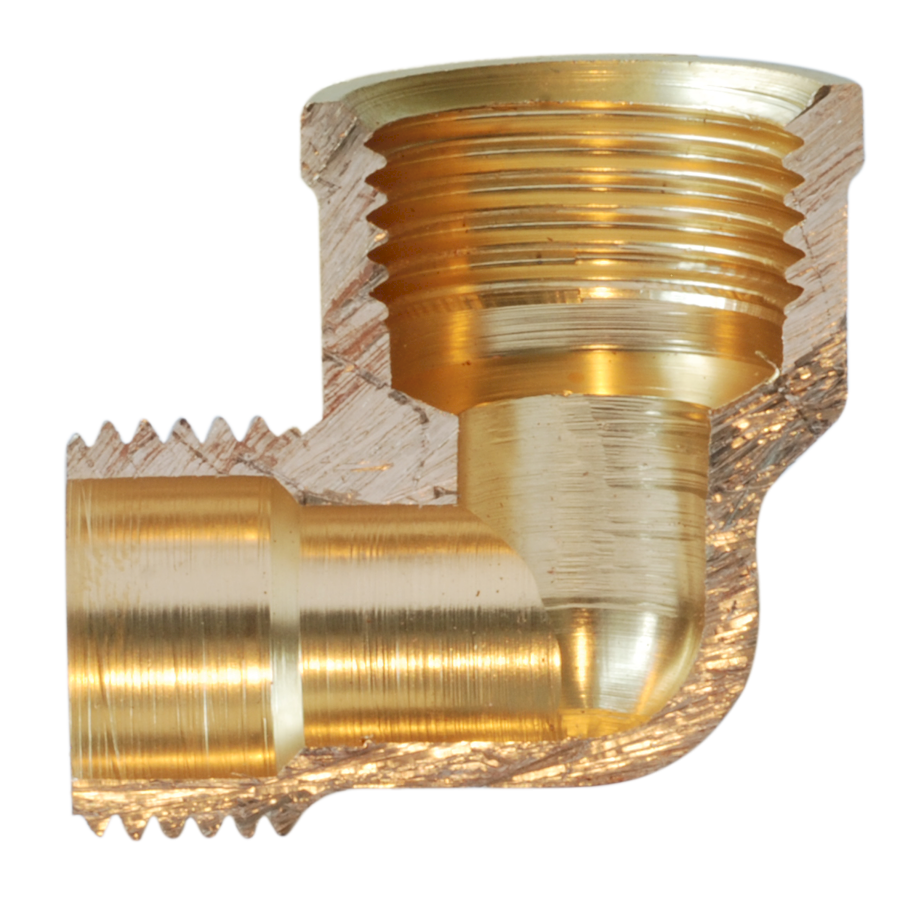

Thread brass fitting, type - elbow 90° with inner x outer pipe threads, without surface treatment. Connecting threads G are parallel for join not sealing on threads according ISO 228-1. Produced according EN 1254-4.
Using:
Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.
