Brass fittings STANDARDBrass nipple 280 MM280 1" Nipple MM STANDARD

280 1" Nipple MM STANDARD

Fittings of brass CW617N. Fittings are specified for joining of threaded according to ISO 228-1. Design: without surface treatment.

Your price	63,16 Kč
Your price without VAT	52,20 Kč

In stock (4581 pcs)Not in stock

Unit:	pcs
Code 2:	031.MMS.280.025
EAN:	8592018405370
Warranty:	2 YEARS
Norms:	ČSN EN 10242, ČSN ISO 7-1
Certificates:	B-02228-20

We recommend

Description

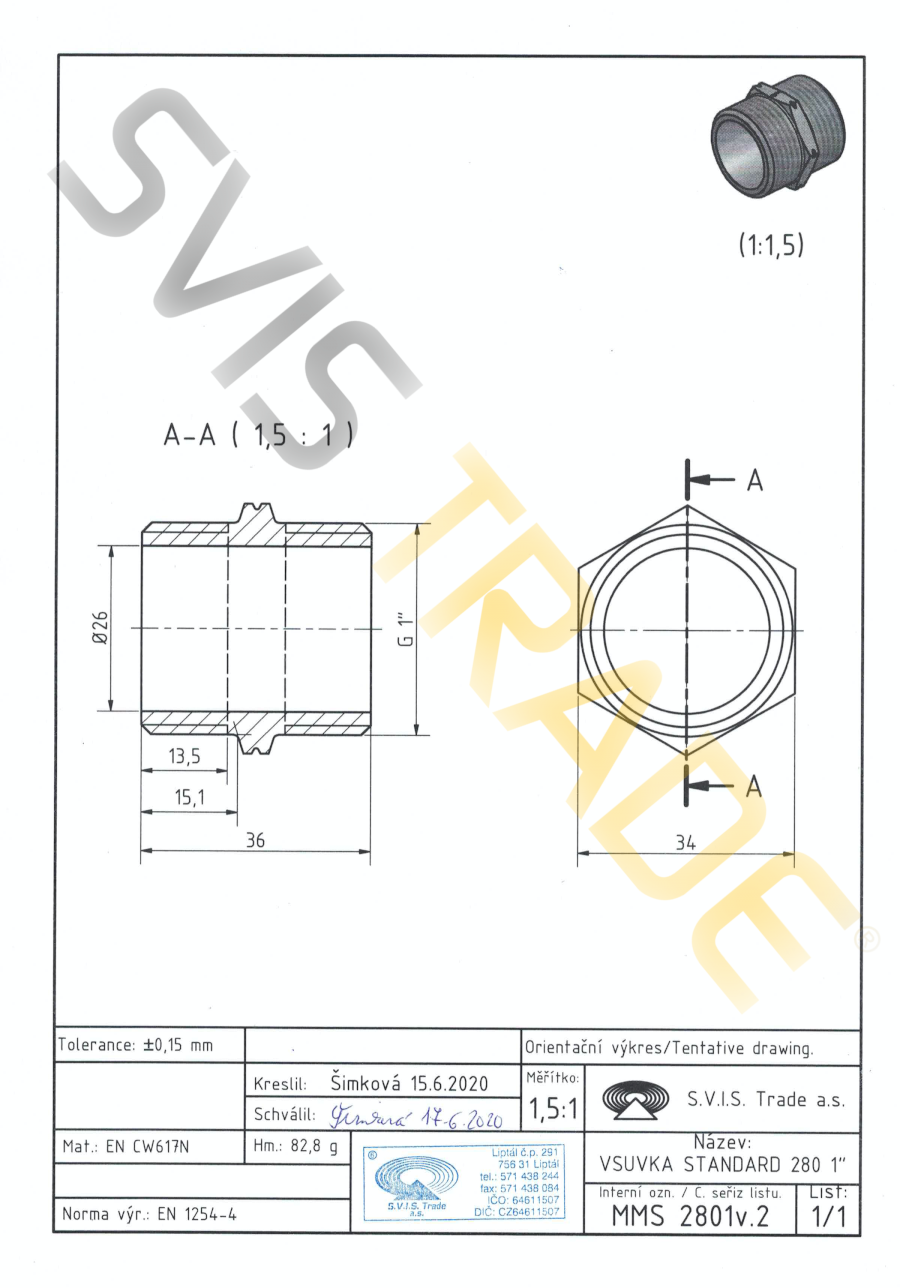

Thread brass fitting, type – Nipple with hexagon, with pipe threads outer x outer, without surface treatment. Connecting threads G are parallel for join not sealing on threads according ISO 228-1. Produced according EN 1254-4.

Using:
Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.

Media

Videos

Product_list

Certifikáty

Certyfikaty_PL

Certifikát B-30-00237-13 CZ

Certifikát STO-30-00487-13 CZ

Certifikát B-30-00956-17 CZ

Návod k montáži CZ

Návod k montáži SK

Návod k montáži PL - INSTRUKCJA MONTAŻU

Návod k montáži HU - Utasítások a szereléshez

Návod k montáži RO - INSTRUCȚIUNI DE INSTALARE

Návod k montáži HR - UPUTE

Other

280 1" Nipple black MM

FC2801

36,54 Kč / pcs with VAT

In stock (0 pcs)Not in stock

Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design is black.

280 1" Nipple galv.

FP2801

39,81 Kč / pcs with VAT

In stock (84015 pcs)Not in stock

Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design: galvanized. Zinc coating thickness of 70 microns is generated by hot dip galvanizing
