HOT DEALMosazná vsuvka 280Brass nipple R3/8" 280 MM GAS

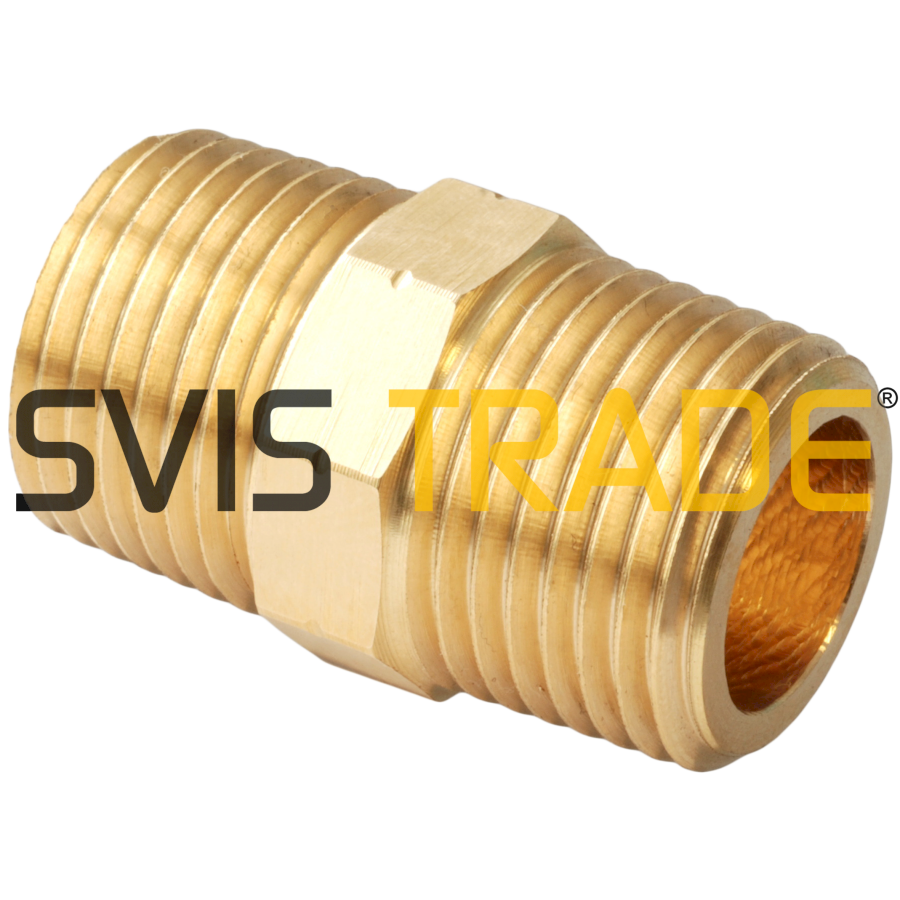

Brass nipple R3/8" 280 MM GAS

Fittings of brass CW617N. Fittings are specified for joining of threaded according to ISO 228-1. Design: without surface treatment.

Your price	37,39 Kč
Your price without VAT	30,90 Kč

In stock (116 pcs)Not in stock

Unit:	pcs
Code 2:	038.MMG.280.010
EAN:	8592018479074
Warranty:	2 YEARS
Norms:	ČSN EN 10242, ČSN ISO 7-1
Certificates:	B-02228-20

We recommend

Description

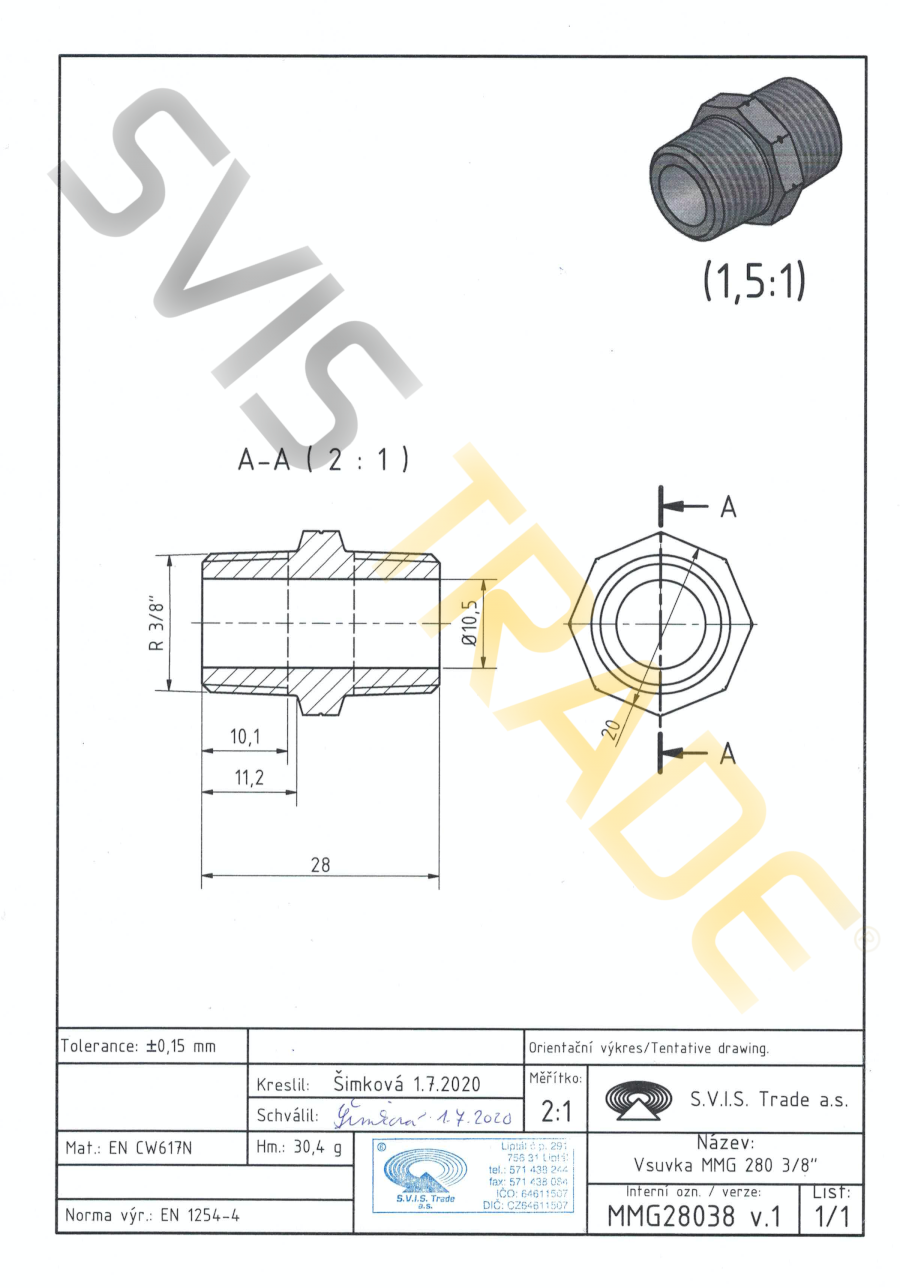

Thread brass fitting, type – Nipple with hexagon, with pipe threads outer x outer, without surface treatment. Connecting threads G are parallel for join not sealing on threads according ISO 228-1. Produced according EN 1254-4.

Using:
Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.

Media

Videos

Certifikát B-30-00237-13 CZ

Certifikát STO-30-00487-13 CZ

Certifikát B-30-00956-17 CZ

Návod k montáži CZ

Návod k montáži SK

Návod k montáži PL - INSTRUKCJA MONTAŻU

Návod k montáži HU - Utasítások a szereléshez

Návod k montáži RO - INSTRUCȚIUNI DE INSTALARE

Návod k montáži HR - UPUTE
