Brass fittings STANDARDBrass nipple 280 MM280 1/2" Nipple MM STANDARD

280 1/2" Nipple MM STANDARD

Fittings of brass CW617N. Fittings are specified for joining of threaded according to ISO 228-1. Design: without surface treatment.

Your price	17,55 Kč
Your price without VAT	14,50 Kč

In stock (1476 pcs)Not in stock

Unit:	pcs
Code 2:	031.MMS.280.015
EAN:	8592018405295
Warranty:	2 YEARS
Norms:	ČSN EN 10242, ČSN ISO 7-1
Certificates:	B-02228-20

We recommend

Description

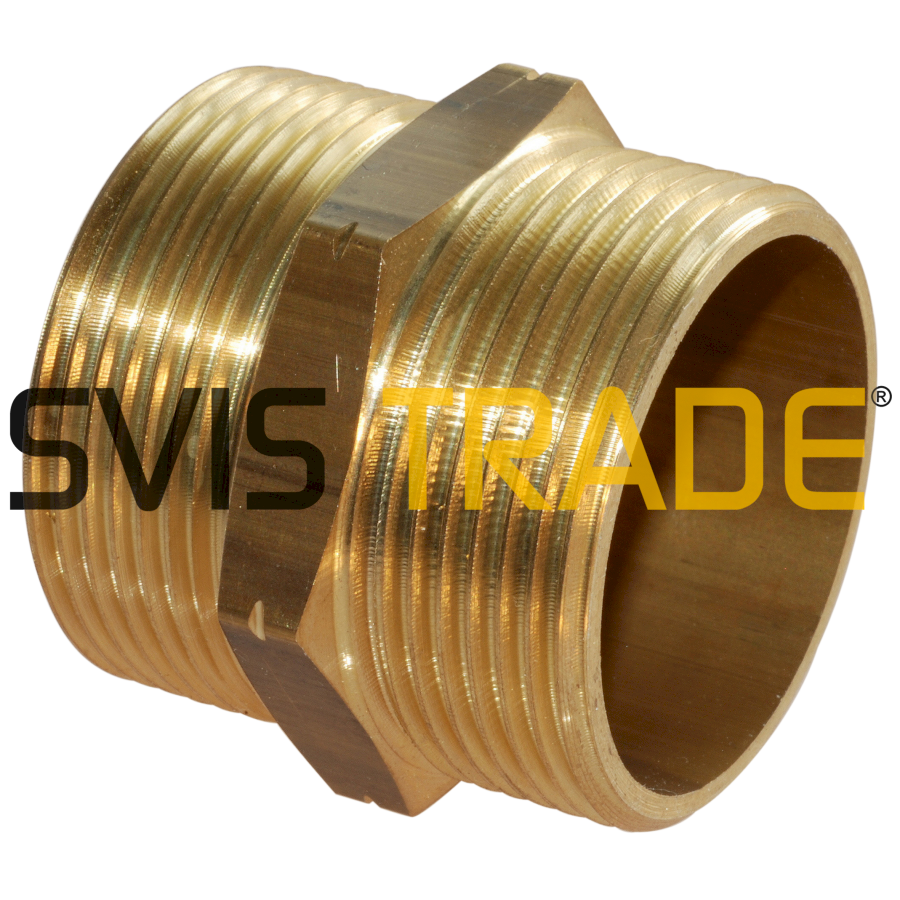

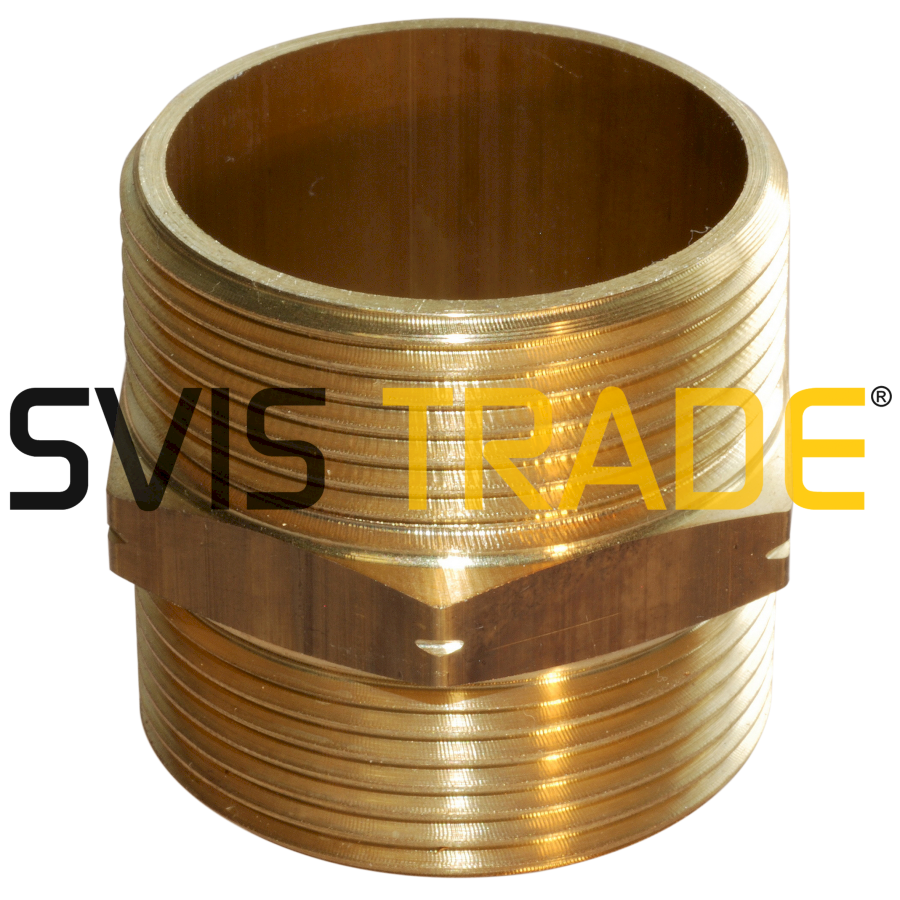

Thread brass fitting, type – Nipple with hexagon, with pipe threads outer x outer, without surface treatment. Connecting threads G are parallel for join not sealing on threads according ISO 228-1. Produced according EN 1254-4.

Using:
Fittings are used to transport water, drinking water, air, non-abrasive and aggressive substances with maximum working pressure of 1.6 MPa at a temperature of fluid from 0 ° C to 120 ° C, medium can not freeze.
