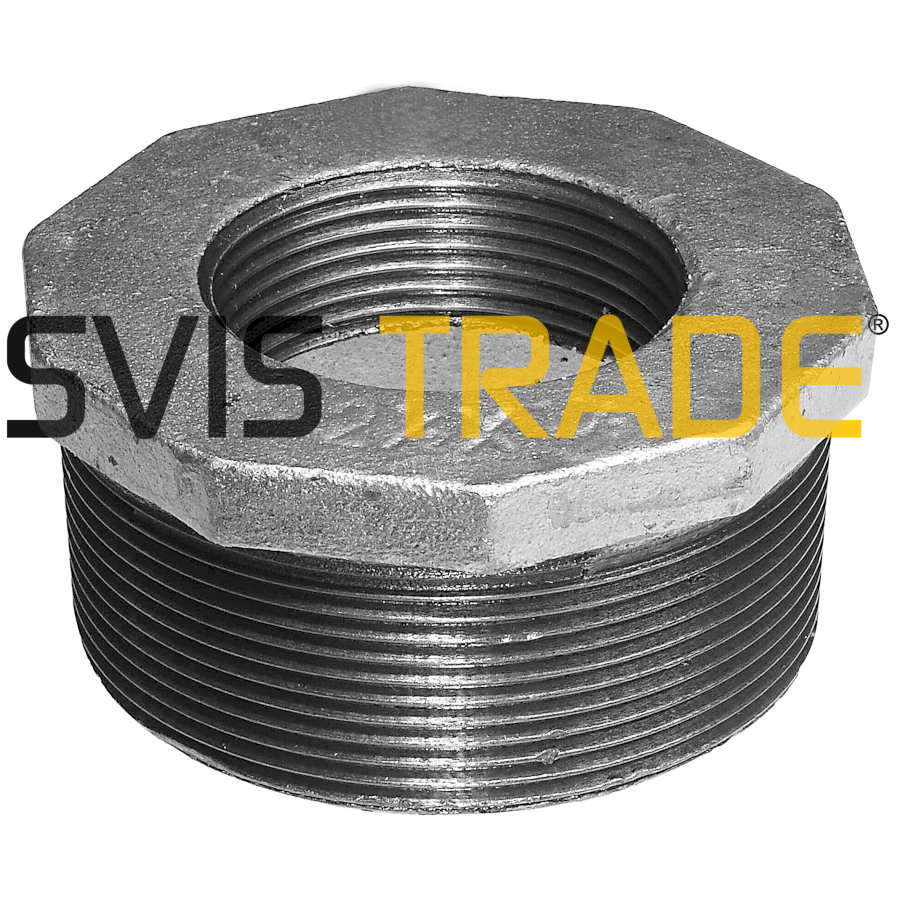

241 1"x3/4" Bushing galv.MF
Fitting of malleable cast iron B300-06. Fittings are specified for joining of threaded according to ISO 7-1. Design: galvanized. Zinc coating thickness of 70 microns is generated by hot dip galvanizing
Your price | 36,06 Kč |
Your price without VAT | 29,80 Kč |
In stock (48267 pcs)Not in stock
Unit: | pcs |
Code 2: | 011.FP.241.025.020 |
EAN: | 8592018101500 |
Warranty: | 2 YEARS |
Norms: | ČSN EN 10242, ČSN ISO 7-1 |
Certificates: | B-31-00636-04 |
Description
Thread pipe fitting from malleable cast iron, kind – reduction (crosseover) with inner x outer tubular threads, galvanized design. Outer thread R and inner thread Rc is conical for sealing of joints on the threads according of norm ISO 7-1. Produced according of norm EN 10242, mark N4.
Using:
Intended for distribution of water, air, nonabrassive and nonaggressive fluid to allowed press 25 bar and temperature from -20 until 120°C, with necessity of prevention for freezing of media.
Media
Videos
Other
Technical specification
Parametry pro vyhledávače
Hmotnost |
Hmotnost
0,062 |
